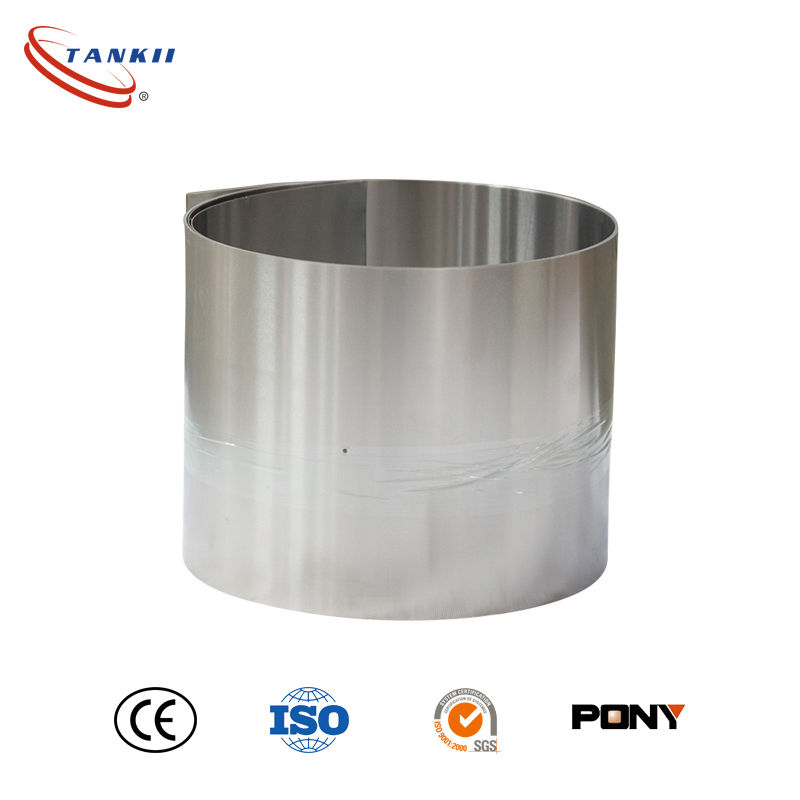

Ni80Cr20 Nichrome Strip 1mm-300mm Width 1200℃ Max Temp

Name: Ni80Cr20 Nichrome Strip 1mm-300mm Width 1200℃ Max Temp
Brand: Shanghai Tankii Alloy Material Co.,Ltd
SKU: Ni80Cr20
Price: 35.00 USD
Availability: InStock

Productdetails

Plaats van herkomst: China

Merknaam: Tankii

Certificering: ISO9001

Modelnummer: Ni80Cr20

Betaling & het Verschepen Termijnen

Min. bestelaantal: 100 kg

Prijs: Nigotiated

Verpakking Details: Houten doos of doosverpakking

Levertijd: 20 dagen

Betalingscondities: T/T, Western Union

Levering vermogen: 2000Tons per Jaar

Krijg Beste Prijs

Contact opnemen

Specificaties

Beschrijving

Specificaties

Markeren:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                              Ni80Cr20 Nichrome strip high temperature, Nichrome strip 1mm width heat resistant, Copper nickel alloy strip 1200℃ max


Materiaal:	Ni80Cr20	Oppervlak:	Helder, geen olie
Max werktemperatuur:	1200 ℃	Smeltpunt:	1400℃
Dikte:	8.4 g/cm3	Specificatie:	W (1 mm-300 mm)*T (0,01 mm ~ 7mm)
Producttype:	strip	HS -code:	7506200000

Materiaal:	Ni80Cr20
Oppervlak:	Helder, geen olie
Max werktemperatuur:	1200 ℃
Smeltpunt:	1400℃
Dikte:	8.4 g/cm3
Specificatie:	W (1 mm-300 mm)*T (0,01 mm ~ 7mm)
Producttype:	strip
HS -code:	7506200000

Beschrijving

Ni80Cr20 Nichrome Strip 1mm-300mm Width 1200℃ Max Temp

Nickel Chromium Alloy Ni80Cr20 Strip Nichrome Cr20Ni80 Tape

Product Specifications

Attribute	Value
Material	Ni80Cr20
Surface	Bright, no oil
Max working temperature	1200℃
Melting Point	1400℃
Density	8.4g/cm³
Specification	W(1mm-300mm)*T(0.01mm~7mm)
Product Type	Strip
HS Code	7506200000

Product Description

Nichrome Tape (Nickel Chromium Resistance Tape) is a high-performance alloy strip designed for demanding industrial applications.

Applications

Rocketry or pyrotechnic igniters
Electric matches and foam cutting
Heating elements and release mechanisms
Ceramics manufacturing
Laboratory equipment
Various industrial heating applications

Available in strip thickness from 0.01mm minimum to 7mm, with widths up to 450mm.

Material composition: 80% nickel, 20% chromium (Ni80Cr20).

Available in oxidized green color finish.

Complies with ASTM B267 and ASTM B344 standards.

Chemical Composition and Properties

Properties Grade	NiCr 80/20	NiCr 70/30	NiCr 60/15	NiCr 35/20	NiCr 30/20
Main Chemical Composition	Ni: Balance Cr: 20.0-23.0 Fe: ≤1.0	Ni: Balance Cr: 28.0-31.0 Fe: ≤1.0	Ni: 55.0-61.0 Cr: 15.0-18.0 Fe: Balance	Ni: 34.0-37.0 Cr: 18.0-21.0 Fe: Balance	Ni: 30.0-34.0 Cr: 18.0-21.0 Fe: Balance
Max Continuous Service Temperature (°C)	1200	1250	1150	1100	1100
Resistivity 20°C (Ωmm²/m)	1.09	1.18	1.12	1.04	1.04
Density (g/cm³)	8.4	8.1	8.2	7.9	7.9
Thermal Conductivity (KJ/m·h·°C)	60.3	45.2	45.2	43.8	43.8
Coefficient of Thermal Expansion (α×10⁻⁶/°C)	18	17	17	19	19
Melting Point (°C)	1400	1380	1390	1390	1390
Elongation (%)	>20	>20	>20	>20	>20
Micrographic Structure	Austenite	Austenite	Austenite	Austenite	Austenite
Magnetic Property	Nonmagnetic	Nonmagnetic	Nonmagnetic	Weak magnetic	Weak magnetic
