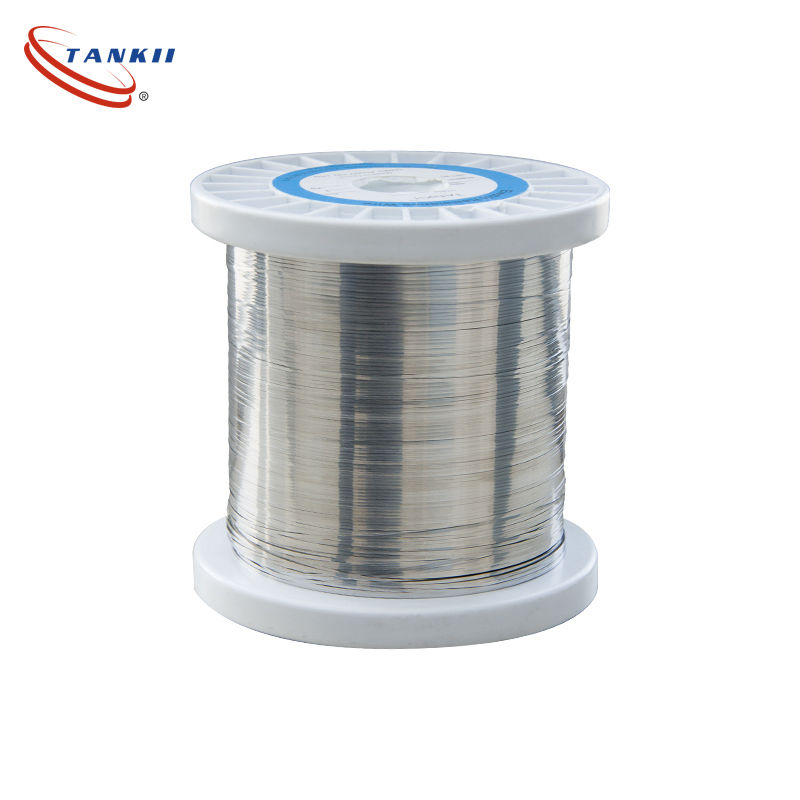

Small MOQ For Ribbon Wire Nichrome 5 Flat Wire 0.2*5mm 0.1*2mm Use For Electric Stoves

Product Description:

Small MOQ For Ribbon Wire Nichrome 5 Flat Wire 0.2*5mm 0.1*2mm Use For Electric Stoves

Nickel-chromium 8020 is the most classic and stable nickel-chromium electrothermal alloy with high temperature performance. Its flat wire form is suitable for planar, compact, and long-lasting heating.

Composition and properties: Ni≈80%, Cr≈20%

Resistivity at 20℃: 1.09～1.13 μΩ·m

Density: 8.4 g/cm³

Maximum continuous operating temperature: 1250℃

Key advantages of NiCr8020:

1. High temperature oxidation resistance: A dense oxide film can still be formed at temperatures above 1200℃, making it resistant to pulverization and slagging.

2. Long service life: NiCr8020 remains non-brittle, non-cracking, and with minimal deformation even after long-term high-temperature use.

3. Stable resistivity: NiCr8020 generates heat evenly, with good consistency in power.

4. Good weldability: NiCr8020 can be spot welded and argon arc welded, ensuring reliable joints.

5. Corrosion resistance: NiCr8020 is resistant to weak oxidizing atmospheres, oil fumes, water vapor, and other environments

Flat wire Advantages:

1. The flat wire boasts a flat cross-section, featuring a large heat dissipation area and uniform heat generation.

2. With its small installation space, it is ideal for narrow slots, surface mounting, and winding structures.

Main applications of flat wire :

1. Heating elements for high-end home appliances: heating belts for high-end electric ovens, air fryers, built-in ovens, electric irons, steamers, clothes dryers, heaters, heating elements for disinfection cabinets, dishwashers, and dryers.

2. Heating belts for industrial high-temperature electric furnaces: industrial annealing furnaces, drying furnaces, muffle furnaces, tunnel kilns, heating belts for glass, ceramics, plastics, and molds.

3. Heating belts for packaging machines:  heat sealing machines, and hot cutters.

4. Heating strips for precision and special heating laboratories: high-temperature furnaces for 3D printers, heating elements for medical equipment, heating elements for analytical instruments, high-power resistors, and load resistor belts.

Regular Size available:

We supply products in the shape of wire,flat wire,strip. We can also make customized material according to useris requests.

Bright and white wire--0.03mm~3mm

Pickling wire:1.8mm~8.0mm

Oxidized wire:3mm~8.0mm

Flat wire:thickness 0.05mm~1.0mm,width 0.5mm~5.0mm

Packing and Shipping:

Product Packaging:

• Coils of electric resistance wire are wrapped in protective plastic film.
• The coils are then placed in a sturdy cardboard box.
• The box is sealed with packing tape and labeled with product information.

Shipping:

• Orders are shipped via standard ground shipping.
• Shipping labels are affixed to the box and include tracking information.
• Orders typically ship within 1-2 business days of being placed.
• Customers can expect to receive their order within 3-5 business days.

FAQ:

Q1: What is the brand name of the electric resistance wire?

A1: The brand name of the electric resistance wire is TANKII.

Q2: What is the model number of the electric resistance wire?

A2: The model number of the electric resistance wire is NiCr6015.

Q3: What is the certification of the electric resistance wire?

A3: The electric resistance wire is certified with ISO9001:2008.

Q4: Where is the electric resistance wire manufactured?

A4: The electric resistance wire is manufactured in Shanghai, China.

Q5: What is the minimum order quantity for the electric resistance wire?

A5: The minimum order quantity for the electric resistance wire is 10kg.

Q6: What is the price of the electric resistance wire?

A6: The price of the electric resistance wire is negotiable.

Q7: What are the payment terms for the electric resistance wire?

A7: The payment terms for the electric resistance wire are L/C, T/T, Western Union, and .

Q8: What is the supply ability of the electric resistance wire?

A8: The supply ability of the electric resistance wire is 3000+TON+YEAR.

Q9: How is the electric resistance wire packaged?

A9: The electric resistance wire is packaged in spool, coil, carton, wooden case with plastic film according to customer's requirements.

Q10: What is the delivery time for the electric resistance wire?

A10: The delivery time for the electric resistance wire is 7-12 days.

Available Shapes of nichrome alloy wires: Round

Flat wire:

ultra-thin round wire: 0.04mm 0.032mm 0.03mmm
