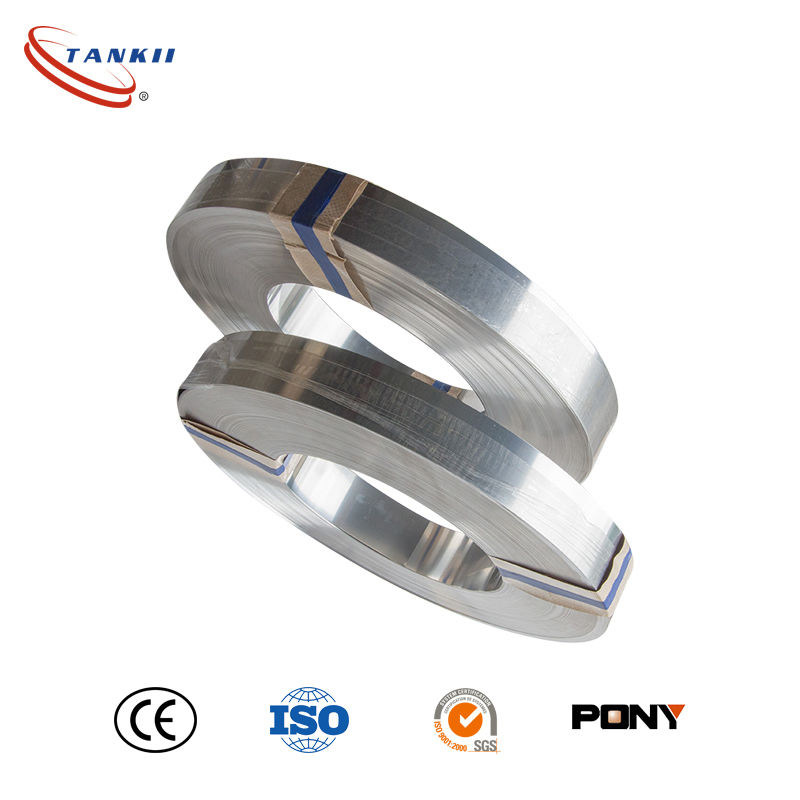

Alkrothal 14 FeCrAl Alloy Ribbon for Heating Elements

Name: Alkrothal 14 FeCrAl Alloy Ribbon for Heating Elements
Brand: Shanghai Tankii Alloy Material Co.,Ltd
SKU: FECRAL
Price: 26.00 USD
Availability: InStock

Productdetails

Place of Origin: China

Merknaam: Tankii

Certificering: ISO9001

Model Number: FECRAL

Betaling & het Verschepen Termijnen

Minimum Order Quantity: 20kg

Prijs: negotiated

Packaging Details: standard export packing

Delivery Time: 20-30 days

Payment Terms: L/C,T/T,Western Union

Supply Ability: 500 Mt/Month

Krijg Beste Prijs

Contact opnemen

Specificaties

Beschrijving

Specificaties

Markeren:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                    FeCrAl alloy heating ribbon, Alkrothal 14 heating element, FeCrAl alloy with warranty


Model NO.:	Alkrothal 14	Application:	Heating
Material Shape:	Strip	Certificering:	ISO9001, RoHS
Sample:	available	Packing:	standard export packing
MOQ:	20KG	HS Code:	72209000

Model NO.:	Alkrothal 14
Application:	Heating
Material Shape:	Strip
Certificering:	ISO9001, RoHS
Sample:	available
Packing:	standard export packing
MOQ:	20KG
HS Code:	72209000

Beschrijving

Alkrothal 14 FeCrAl Alloy Ribbon for Heating Elements

Ferritic Iron-Chromium-Aluminium Alloy Alkrothal 14 Ribbon

Product Specifications

Attribute	Value
Model NO.	Alkrothal 14
Application	Heating
Material Shape	Strip
Certification	ISO9001, RoHS
Sample	Available
Packing	Standard export packing
MOQ	20KG
HS Code	72209000

Product Description

Alkrothal 14 Ribbon is a ferritic iron-chromium-aluminium alloy (FeCrAl alloy) with high resistivity suitable for use at temperatures up to 1100°C (2010°F). Typical applications include rheostats, braking resistors, and electrical heating elements in industrial applications.

Chemical Composition

C %	Si %	Mn %	Cr %	Al %	Fe %
Nominal composition
			4.3		Bal.
Min	-	-	14.0	-
Max	0.08	0.7	0.5	16.0	-

Mechanical Properties

Thickness	Yield strength	Tensile strength	Elongation	Hardness
mm (in)	MPa (ksi)	MPa (ksi)	%	Hv
1.0-3.0 (0.04-0.12)	420 (61)	550 (80)	20	200

Additional Information

Material available: Cr20Ni80, Cr30Ni70, Cr15Ni60, Cr20Ni35, Cr20Ni30, Cr20Ni25, NiCr25FeAlY, Cr13Al4, Cr21Al4, Cr14Al4, Cr20Al4, Cr21Al6, Cr23Al5, Cr25Al5, Cr21Al6Nb, Cr25Al5SE
Shape: Wire, strip, ribbon, sheet, coil

We can also design and manufacture according to your request. Shanghai Tankii Alloy Material Co., Ltd. specializes in production of Ni-Cr Alloy, Cu-Ni Alloy, Fechral, thermocouple wire, pure nickel and other precision alloy materials in the form of wire, strip, rod, bar and plate.

Alloy Characteristics

Ferritic alloys allow to reach process temperatures of 2192 to 2282°F, corresponding to a resistance temperature of 2372°F. All ferritic alloys have approximately the same basis composition: 20 to 25% of chromium, 4.5 to 6% of aluminium, with the balance being iron. Some contain rare earth elements like yttrium or silicon. The ferritic structure results in grain growth and chromium carbide precipitation at grain joints after high-temperature operation, which can increase embrittlement when cooled to ambient temperature.
